Nylon corrugated pipe
Material:Nylon Operating temperature:-40～+120℃,Short time+150℃; Certification：ROHS、REACH、halogen-free； Flammability：Non-flame retardant； Material properties： Excellent high and low temperature resistance, strong deformation resistance, high impact resistance, high mechanical strength, chemical stability, alkali resistance and most chemical solvents, inorganic salt resistance, mineral oil, easy water absorption;
Category: Bellows
E-mail: bangtai@188.com
+86-020-86443644
400-7777-188
- Product
-
- Commodity name: Nylon corrugated pipe
Material:Nylon Operating temperature:-40～+120℃,Short time+150℃; Certification：ROHS、REACH、halogen-free； Flammability：Non-flame retardant； Material properties： Excellent high and low temperature resistance, strong deformation resistance, high impact resistance, high mechanical strength, chemical stability, alkali resistance and most chemical solvents, inorganic salt resistance, mineral oil, easy water absorption;
Product usage：
Suitable for external protection of wires and cables, and can also be used as a water pipe or ventilation pipe for low pressure or non-enclosed channels；Product assortment:
It can be used with all kinds of hose connstors and hose brackets；
Customize:
According to customer requirements of color, length, special interface modeling can be customized production, Specific corrugated structures can be produced by custom moulds；Nylon bellows
Ordinary tube model
Split pipe model
Pipe diameter collectively
inner diameter x outer diameter
Minimum bending radius
AB-7B/B
AK-7B/B
AD7
4.8×7.1
6
AB-7.5B
AK-7.5B
AD7.5
5.0×7.8
6
AB-8.5B/B
AK-8.5B/B
AD8.5
6.0×8.5
8
AB-10B
AK-10B
AD10(1/4")
7.5×10.0
10
AB-12B
AK-12B
AD11.5
8.5×11.5
15
AB-13B
AK-13B
AD13(5/16")
10.0×13.0
20
AB-15.8B
AK-15.8B
AD15.8(3/8")
12.0×15.8
30
Keywords: Nylon corrugated pipe
Related Products

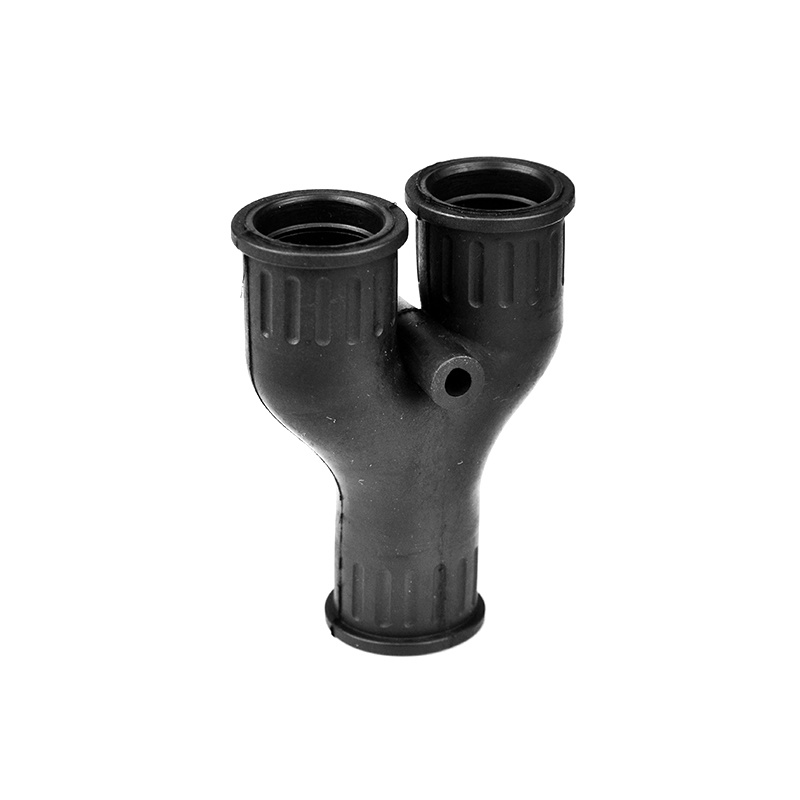

Y-type three-way hose coupling
